IT cooling challenges continue escalating as new server-accelerated compute technologies, machine learning, artificial intelligence, and high-performance computing drive higher heat densities in the data center environment. Liquid cooling is rapidly emerging as the technology for efficiently handling power-dense hot spots. As the chart below shows, as rack density increases in the data center, air is not as effective as liquid in cooling the load.

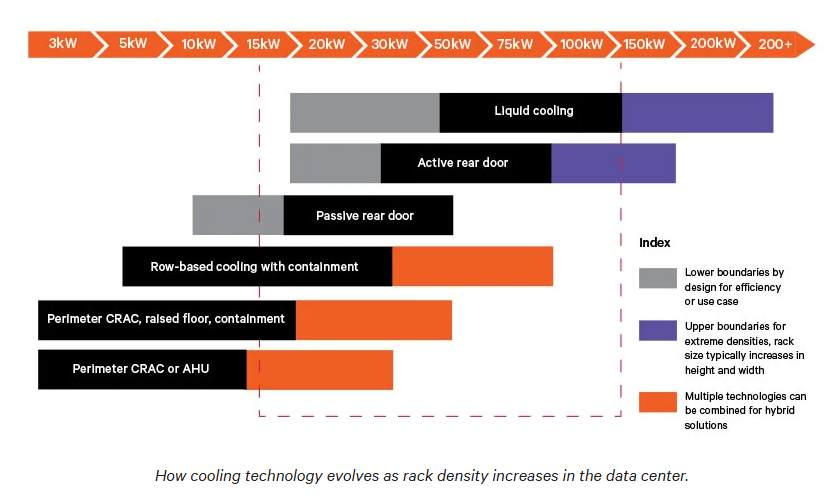

How cooling technology evolves as rack density increases in the data center.
For high-powered CPUs and GPUs to operate within specification, known as maintaining within case temperature, the coolant distribution unit (CDU) offers a broader range of cooling capacity, higher efficiencies, and a more flexible solution than traditional air-cooling options.
A CDU is designed to manage high heat loads for accelerated compute and high-density data center environments, providing critical cooling capacity and heat removal functions. The CDU provides controlled, contaminant-free coolant for heat exchangers, direct-to-chip, and immersion cooling devices.
CDUs are an integral part of liquid cooling systems designed to increase overall system efficiency and reduce the total cost of ownership for high-density applications in the data center.
The CDU circulates and pumps coolant in a closed-loop system within the rack and server chassis and utilizes facility water (in full liquid cooling systems) and the air outside the rack to cool the servers.
Because liquid is more efficient than air at transferring heat, CDUs can be introduced where higher rack densities have increased the heat being produced beyond the capability of air-cooled systems. The CDU network exchanges heat between the building’s existing facility cooling systems or liquid loop (FWS) and the CDU loop (TCS), which runs closer to the IT equipment.
How cooling technology evolves as rack density increases in the data center.
Using Liquid to Supplement Existing Facility Cooling Systems
For high-powered CPUs and GPUs to operate within specification, known as maintaining within case temperature, the coolant distribution unit (CDU) offers a broader range of cooling capacity, higher efficiencies, and a more flexible solution than traditional air-cooling options.
A CDU is designed to manage high heat loads for accelerated compute and high-density data center environments, providing critical cooling capacity and heat removal functions. The CDU provides controlled, contaminant-free coolant for heat exchangers, direct-to-chip, and immersion cooling devices.
What is a Coolant Distribution Unit?
CDUs are an integral part of liquid cooling systems designed to increase overall system efficiency and reduce the total cost of ownership for high-density applications in the data center.
The CDU circulates and pumps coolant in a closed-loop system within the rack and server chassis and utilizes facility water (in full liquid cooling systems) and the air outside the rack to cool the servers.
Liquid is More Effective at Transferring Heat
Because liquid is more efficient than air at transferring heat, CDUs can be introduced where higher rack densities have increased the heat being produced beyond the capability of air-cooled systems. The CDU network exchanges heat between the building’s existing facility cooling systems or liquid loop (FWS) and the CDU loop (TCS), which runs closer to the IT equipment.

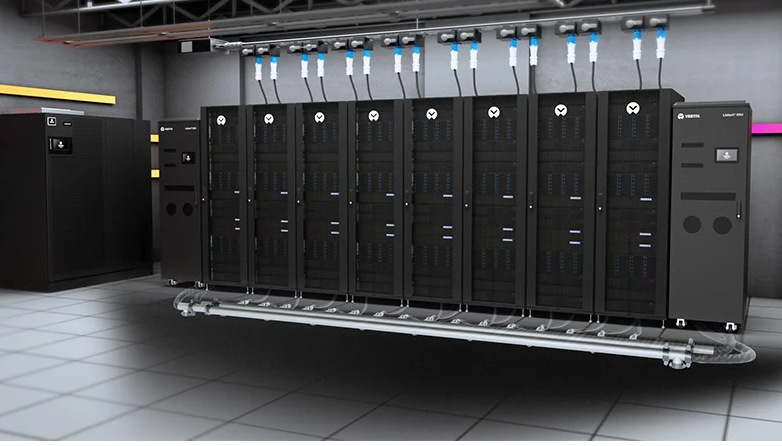

Vertiv™ XDU, Coolant Distribution Unit with a raised floor
How do CDU Units Work?
Coolant distribution units create an isolated secondary loop separate from the chilled water supply, enabling strict containment management and precise control of the liquid cooling system's temperature, pressure, and flow rate.
The CDU maintains the secondary loop supply temperature above the dew point of the data center, preventing condensation and ensuring 100% sensible cooling.
Whether self-contained in-row CDUs or integrated in-rack CDUs, liquid-to-liquid coolant distribution units must be connected to the existing FWS supported by a heat exchanger that facilitates the transfer of heat out of a CDU.
Vertiv™ XDU, raised floor, front view, close up
Vertiv™ XDU, Rear viewFor a liquid-to-air system, the CDU transfers the heat to the ambient supply utilizing a heat exchange coil design within the CDU.
CDUs are equipped with filters, typically 50 microns, to keep the water supply contaminant and debris free and to protect the server cold plate integrity and performance. Most systems feature integrated leak detection, intelligent flow monitoring devices, and alarm features to maintain system performance and protect data center equipment.

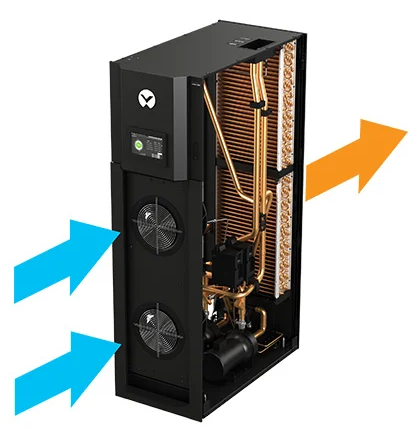

The Vertiv™ Liebert® XDU 070 cooling distribution unit functions as a liquid-to-air heat exchanger for cooling chips.
Liquid-to-liquid CDUs
Liquid-to-liquid CDUs yield the best cooling performance. However, they require installing pipes and pumps to connect to the facility's water.
Liquid-to-air CDUs
Though limited in cooling capacity and capability compared to other devices, the products in this category do not require water pipes to be connected to the building system for heat rejection. Liquid-to-air CDUs can be installed more efficiently, take less space, and have lower installation and initial costs than liquid-to-liquid CDUs. They enable localized liquid cooling for high-output IT equipment but leverage the technologies from existing data center cooling systems to dissipate heat.
Benefits of a Coolant Distribution Unit
Efficient Cooling
CDUs are more compact and flexible than traditional air conditioning systems. Because of their smaller size and weight, they can also be located closer to the cooled server, which requires less energy because they don't need to distribute coolant over an entire room or building.
CDUs can achieve significant energy savings compared to traditional air conditioners or chillers by reducing power consumption while increasing system uptime and reliability – leading to lower operating costs in the long run.
Precise Temperature Control
CDUs can also help protect data centers from potential damage due to overheating. Due to specialized controllers, CDUs can maintain precise temperatures from -20°C (-4˚F) up to a maximum of +70°C (158˚F), making it easier for data center operators to customize their requirements. This prevents component failure or even fire hazards.
Redundancy
Redundant pumps and power inputs ensure continuous operation and that precise temperature, flow rate, and pressure are continuously maintained, thus ensuring uptime and increasing reliability.
Conclusion
Coolant Distribution Units (CDUs) are essential in data centers with high-density applications providing close controlled coolant delivery and precise control of the liquid cooling system. They help manage heat loads, reduce power consumption, and increase efficiency and reliability through redundancy. CDUs also promote environmental sustainability by decreasing carbon dioxide emissions.
Contents
In 2026, the global electrical transformer market-covering power, distribution, dry-type, and other segments-is sitting at around USD 82 billion, up from roughly 78 billion the year before. Most forecasts point to steady growth with CAGRs between 5% and 6.5% heading into the early 2030s, though the exact numbers vary a bit depending on the source.
The big drivers are pretty clear: exploding electricity demand from renewable energy integration, AI-powered data centers, EV charging networks, grid upgrades, rapid urbanization, and the urgent need to replace a ton of aging infrastructure. That said, supply is still struggling to keep up, especially in North America. Long lead times, higher prices, and procurement headaches have basically become the new normal, and they're likely to stick around well into the late 2020s.
Demand has surged - Power transformer demand in the U.S. is up about 119% since 2019, while distribution transformers have grown around 34%. Similar pressures are playing out globally. Clean energy projects, data centers, manufacturing and EV loads are all pulling hard, and over half of U.S. distribution transformers (roughly 40 million units) have already passed their expected lifespan.
Supply shortages remain a real pain - In the U.S., there's still something like a 30% shortfall for power transformers and around 10% for distribution units (based on 2025 modeling, and it's not easing fast). Pad-mounted three-phase transformers are expected to get even tighter in 2026 thanks to data center and EV demand. Globally, high-voltage power transformer gaps are likely to continue through at least 2028. Lead times? Large power and GSU units can still run 128–144 weeks or more, while distribution transformers are sitting at 12–24 months-better than before, but still elevated.
New capacity is coming, but slowly - About USD 2 billion in fresh North American manufacturing investments (think Hitachi Energy, Siemens, and Eaton plants ramping up from 2027 onward) should help eventually. For now, though, demand is outrunning the new supply. Asia-Pacific continues to lead in both production volume and growth.
Regional differences matter - North America feels the squeeze the most because of heavy data center and EV pressure. Europe benefits from tough efficiency and fire safety rules, while Asia-Pacific is seeing the fastest volume growth driven by electrification and urban expansion. If you're buying from Singapore or elsewhere in Asia, you can often get better regional pricing-but you're still exposed to global swings in material costs.
Prices are still noticeably higher than pre-2020 levels, thanks to big jumps in raw materials (copper up ~70% since 2020, grain-oriented electrical steel up 80–100%), stricter efficiency standards adding 8–12% to costs, logistics headaches, and those ongoing shortages. In 2026, expect pricing to stay high but relatively steady, with modest year-over-year increases of around 3–5% after some stabilization late in 2025.
Here are some rough 2025–2026 ranges in USD per kVA (these vary by specs, region, and efficiency tier-North America tends to be the most expensive due to tariffs and shipping):
Distribution transformers (e.g., 33 kV class): Asia around 28–35; North America/Europe 38–50.
Power transformers (e.g., 132 kV class): Asia 25–32; North America/Europe 35–47.
Efficiency-upgraded or renewable-specific units (20–100+ MVA): typically carry a 10–45% premium over baseline models.
Since 2019, we've seen power transformers rise about 77%, GSUs around 45%, and some distribution classes jump as much as 95%. Ouch.
Today's transformers are all about low-loss designs-using amorphous cores and high-permeability steel-to hit standards like the U.S. DOE 2016, IEC 60076, and EU EcoDesign Tier 2. Well-optimized units commonly reach 98–99.5%+ efficiency at full load, with real focus on cutting both no-load and load losses to bring down total cost of ownership and emissions.
1. Power Transformers (high-voltage, transmission, substation, and GSU types) Market size is moving from about USD 30.4B in 2025 to 32–33B in 2026 (+6–7%), with a global CAGR around 6–7% through 2030 and beyond. These face the worst shortages and longest lead times. Demand is strong from renewables evacuation, HVDC lines, and grid upgrades. Performance-wise, they handle up to 765 kV and over 600 MVA. Oil-immersed designs still dominate because they offer better cooling and can handle short-term overloads of 130–150%. Efficiencies hit 98.5–99.7% at full load with low losses; advanced amorphous cores can slash no-load losses dramatically. Their high thermal capacity makes them great for sustained heavy loads. Price impact: They've seen the biggest absolute cost increases, with extra premiums for renewable or offshore projects.
2. Distribution Transformers (pad-mounted, pole-mounted, etc.) Market size sits around 21–22B in 2025, heading toward 22–27B in 2026 (pad-mounted subset near 26–27B), with growth of 4–7% overall and faster rates (6–9%) in North America and Europe. Shortages are moderate and improving for smaller units, but pad-mounted ones are getting tighter due to data centers and EVs. Replacing old fleets is a huge tailwind. They typically go up to ~35 kV and under 2,500–10,000 kVA. Liquid-filled (oil-immersed) models are the go-to for outdoor and utility use-they deliver better efficiency and heat dissipation than dry-type. Low-loss versions (like SH15 amorphous) can cut no-load losses by 70–80%. Three-phase units dominate commercial and industrial applications. Price-wise, some classes have seen the sharpest relative increases, with big regional differences.

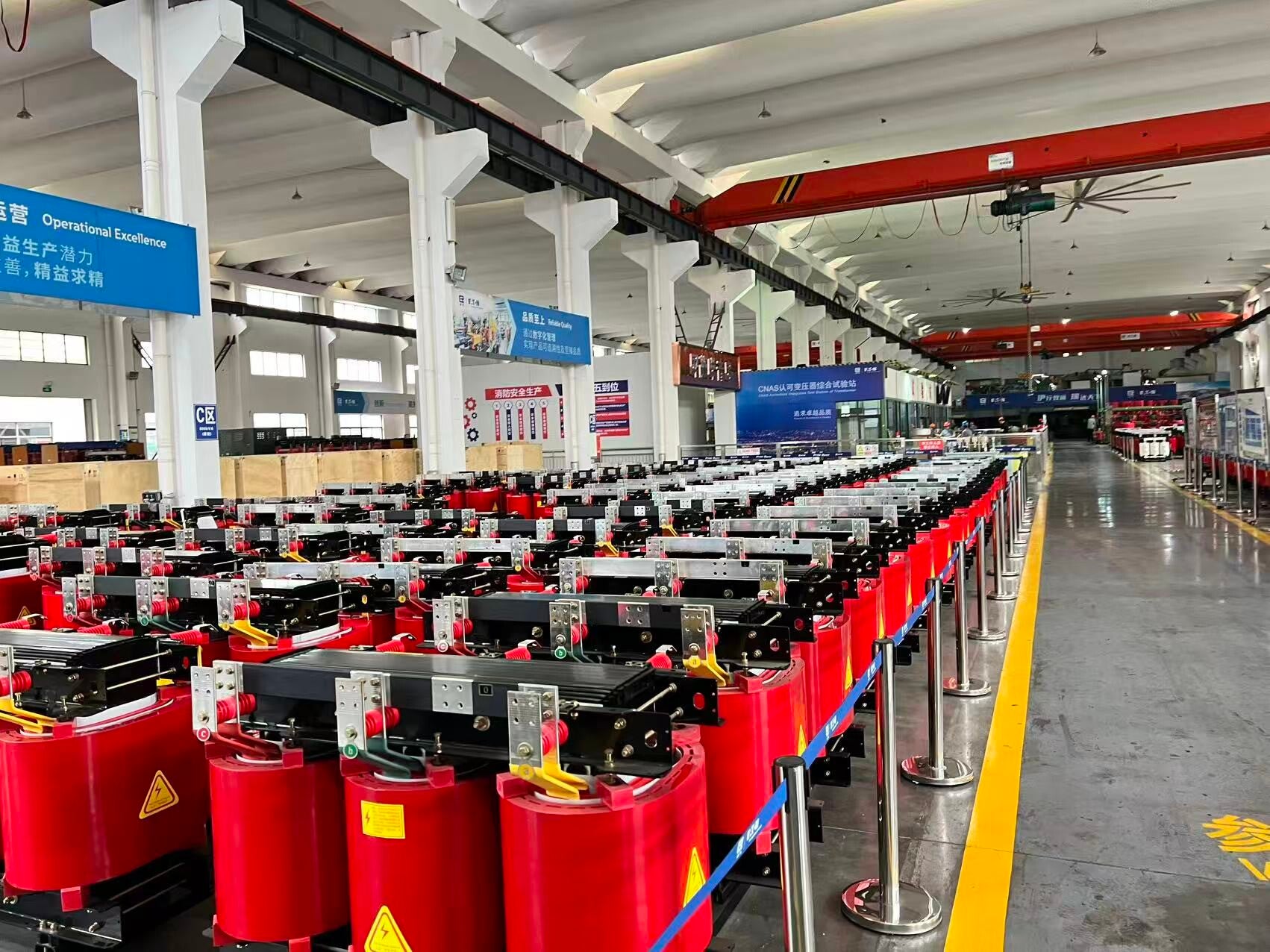

3. Dry-Type Transformers This segment is growing fastest: from ~8.7–9B in 2025 to 9.3–9.5B in 2026 (+7%), with strong momentum continuing toward 2035. It's booming in indoor and safety-sensitive spots like data centers, hospitals, and buildings. They're less impacted by oil-related regulations and fire codes. Performance: Air- or solid-insulated (no oil), usually rated ≤35 kV and ≤2,500 kVA. Efficiencies run 96–98.5%-a bit lower than oil-filled because of air cooling-and they tend to have higher no-load losses. But they shine on fire safety, low maintenance, and environmental friendliness. Great choice for data centers and EV chargers. Noise levels are 55–70 dB (with fans), and they handle seismic activity well. Compared to oil-filled: Dry-type wins on safety, maintenance, and TCO in low-utilization or indoor settings. Oil-filled is better for high-load efficiency, higher capacity, and overload capability.
4. Data Center Transformers (a hot specialized sub-segment) This niche is expanding from USD 9.45B in 2025 to about 10.08B in 2026, with a CAGR of ~6.8% through 2032. These are high-efficiency liquid or dry-type units built for dense, ultra-reliable power. Explosive demand from AI and hyperscalers is a major factor-and it's making pad-mounted and distribution shortages even worse.
Oil-filled: Higher efficiency, superior cooling and overload handling, lower losses at high utilization. Downside? You need proper containment and fire precautions.
Dry-type: Safer (no leak or fire risk), easier maintenance, more indoor-friendly. Trade-offs include slightly lower efficiency and more limited capacity.
Bottom line for 2026: The market is strong, but supply is still constrained. Plan way ahead-lead times can run 12 to 36+ months-budget for premium pricing, and lean toward high-efficiency, low-loss models to keep long-term energy costs in check. North American buyers are feeling the pinch the hardest, while sourcing from Asia or globally can sometimes offer relief (as long as logistics work out). New manufacturing capacity and better efficiency tech should start easing things after 2027, but the broader energy transition will keep demand robust for years to come.
For actual project quotes, it's always best to talk directly with manufacturers like Hitachi Energy, Siemens, or Eaton-real pricing depends heavily on voltage class, capacity, efficiency requirements, and your location.
